I have 8 Icepower 125ASX2 modules for sale. These were in a pair of Sonance zone amps. I had originally planned to make an amp with three bridged modules for LCR and a module each for side, rear, front height, and rear height (1 spare) but ended up instead falling for speakers that required their own DSP amp.
Buy 4 get the amp case and front end for free
Pickup, or shipping at cost from Chicago 60607 or 60615.
I can buy 2, 43074 but I’ll DM. Heh, used to have 4 myself few years back when was running 8 channels for front LCR (3way + 2way center).
Front end? Imagine speaking of drv134 like board to BTL, have some of those.
What kind of case? though think still 2 is all need at moment.
I’ll take a pair. I’ll send a PM.
4 of 8 currently spoken for. Also didn’t mention earlier but will include the cable set from original amp.
I’m interested in a couple. Do you have pics of the amp case?
I’d be interested in 1 board (I assume it’s 2 channels?). What do you need to make it operational? Any information on what case I would need for it and wiring kit info? I’m in the Chicago burbs 60491.
Yes, 1 board is 2 channel single ended input and can be bridged to mono if you input a balanced signal. You’ll need a power switch and several wiring harnesses (which I think Jay said was included) that you need modify the non-amp end for your use case. 1) mains in 2) signal in 3) speaker out.
ICEpower125ASX2_Datasheet_2.3.pdf (1.9 MB)
I believe PE also have harness kits for these.
Any more remaining?
Also, can you please post the case/front end specs / pictures. I have the modules, might be interested in the case if it work for my scenario.
yes, PE has the harness. I paid a lot more each from ebay for questionable boards and got the wiring kits from PE.
I assume you can buy a case for these from Ghent as well.
Ouch, I went perusing ali express and notice things are more spendy. Diyaudio store not have the galaxy’s (Italy sourced) in stock. So I bought one of these of da zon, Amazon.com: Aluminum Project Box Matte Black Enclosure Case DIY Electronic Product Casing for Heat Dissipation Aluminum Shell of Electronic Products, PCB Junction Aluminum Box, DIY : Tools & Home Improvement Need to build a couple preamps to use up some remote controlled motorized pots that accumulated since mostly quit amp/pre building. Though if use for the icepower 2x125’s will need to add some vent holes.
Was also bummed when looked at antek toroids few days back and noticed 300-400va toroids now about 20 bucks more, ug. But found a pair of plitrons on ebay for my needs, albeit have to dual mono (160va) for a pass project using up some heatsinks, and double as a space heater for the winter.
I believe there’s one not currently spoken for. I thought I brought them to the new house but apparently not. Will get packaging sorted and take pictures of the cases on Saturday.
These are all spoken for. I expect I’ll have the Priority flat rate envelopes Tuesday and will follow up individually re payment details and shipping address requests.
My amps arrived in one piece today.
Thanks,
Ron

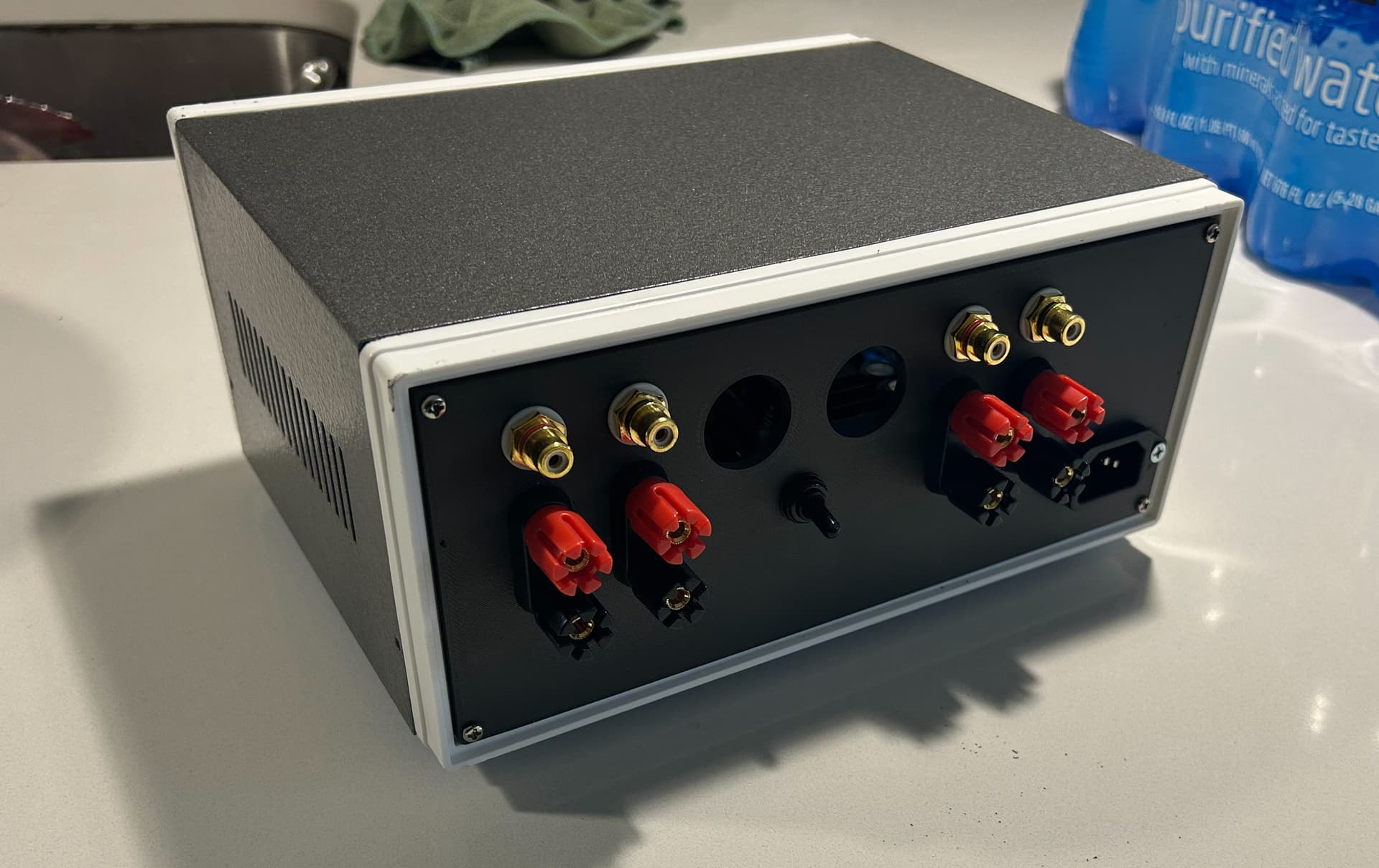

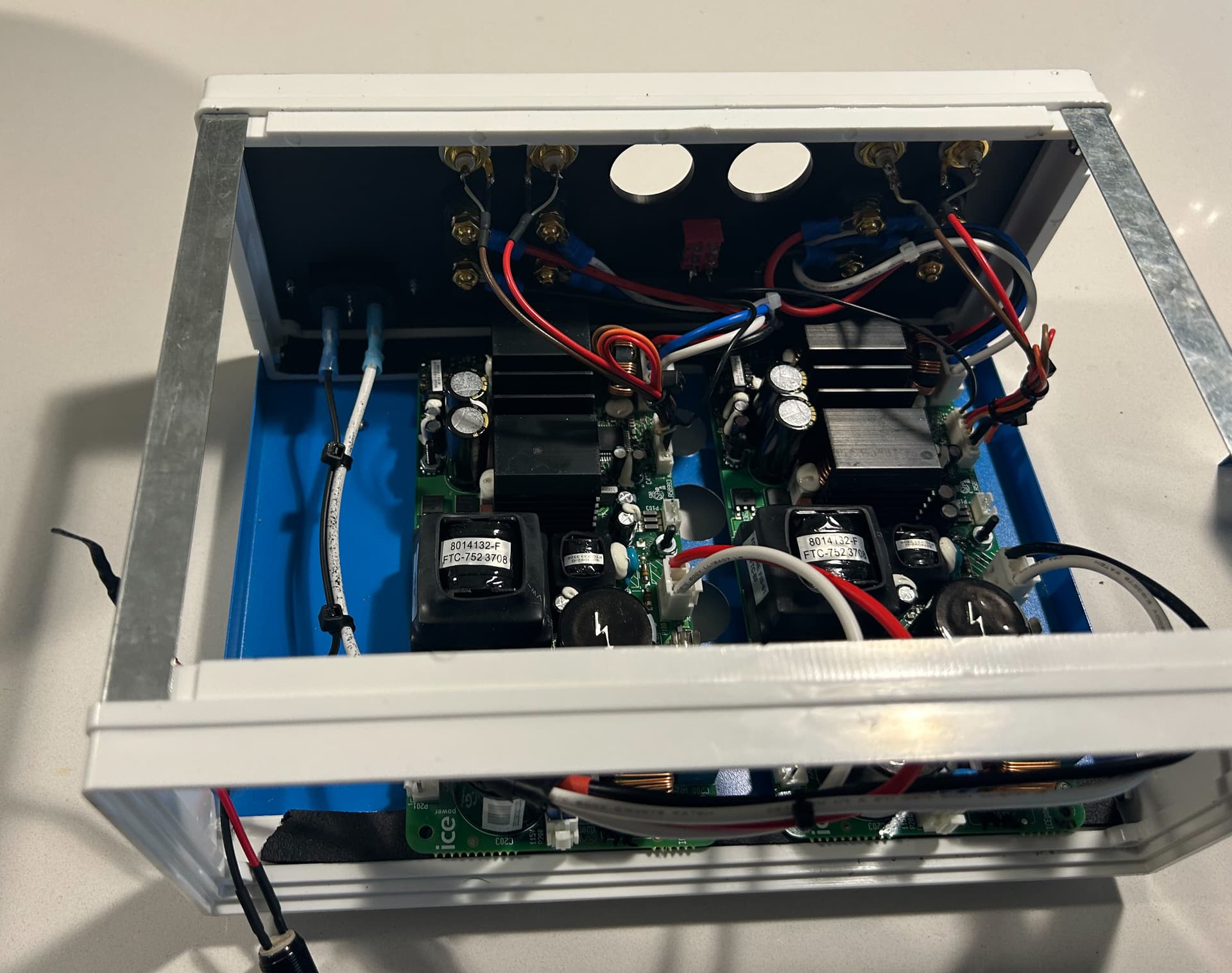

Got mine today too, slapped into a 23 buck box from amzn. 3D printed rear plate, need to order some neutrik xlr’s in my next PE order (i like the cheap plastic ones they have) and toggle switch to pull pin1 on signal section to ground when feeding balanced signal, just to tell the module to synchronize it’s channels as much as possible for BTL’ing. Need to 3d print a snazzy face plate. Was too lazy to disconnect the white plastic frames to paint them some other color - can do that another time if choose too.
thanks
looks great! Which XLR connectors - got a link? Also, can you pls share the 3d file for the backplate - you got all the dimesnions of the cut-outs needed.
Need to tweak the fusion a tiny bit to add like 1mm back in width/span. Plus better if had holes for the xlr and the iec inlet, though these were patterns had in previous fusion files where piecing something together quick n dirty where i just tap screw in once. But other projects provision for inserts. I’ll try to upload the exported fusion360 .f3d? later or tomorrow
Thanks, sounds good. Can the entire exclosure be 3d Printed? Where and how do we ground. Or have a bottom Alu plate and ground it? Looking for the min requirements for grounding.
No ground into icepower modules, but prob should take iec ground to chassis so chassis earthed. It’s thin guage steel it feels like. Zulkit Junction Box Blue Metal Project Box DIY Electric Enclosure Case Preventive Case Electrical Box 9.8 x 7.5 x 4.3 Inch - Amazon.com
Prob could use it’s rough dimension to make printable portions within the common 256x256. Though not that ambitious heh. Just easier to print the plate than patience needed drilling the thin steel plate, plus blue bit bold so i just painted the outter shell.
